Packaged Product Lines
Let’s Get Started
On this page you will find all our Packaged systems. If you are looking of a specific BTU or brand we have you covered. If your project requires a custom solution we can handle that as well. Surf over to our Engineered Products page for more information. From there you can reach out to us and start putting us to work for you.
Below you can navigate around our manufacturing partners and products if you know what you’re looking for, or go direct with us on the Contact Us page and we will do all the leg work for you. You will notice we do things a
little different here at AC Quest then other online stores. Where everyone else puts a one price fits all on there sites we don’t. We believe in working for you and getting you the best price for your project so with a little information from you we can make sure you save time and get the correct price right from the beginning..
Vert-I-Pak® VPATC
| MPN: | Vert-I-Pak |
Product Overview

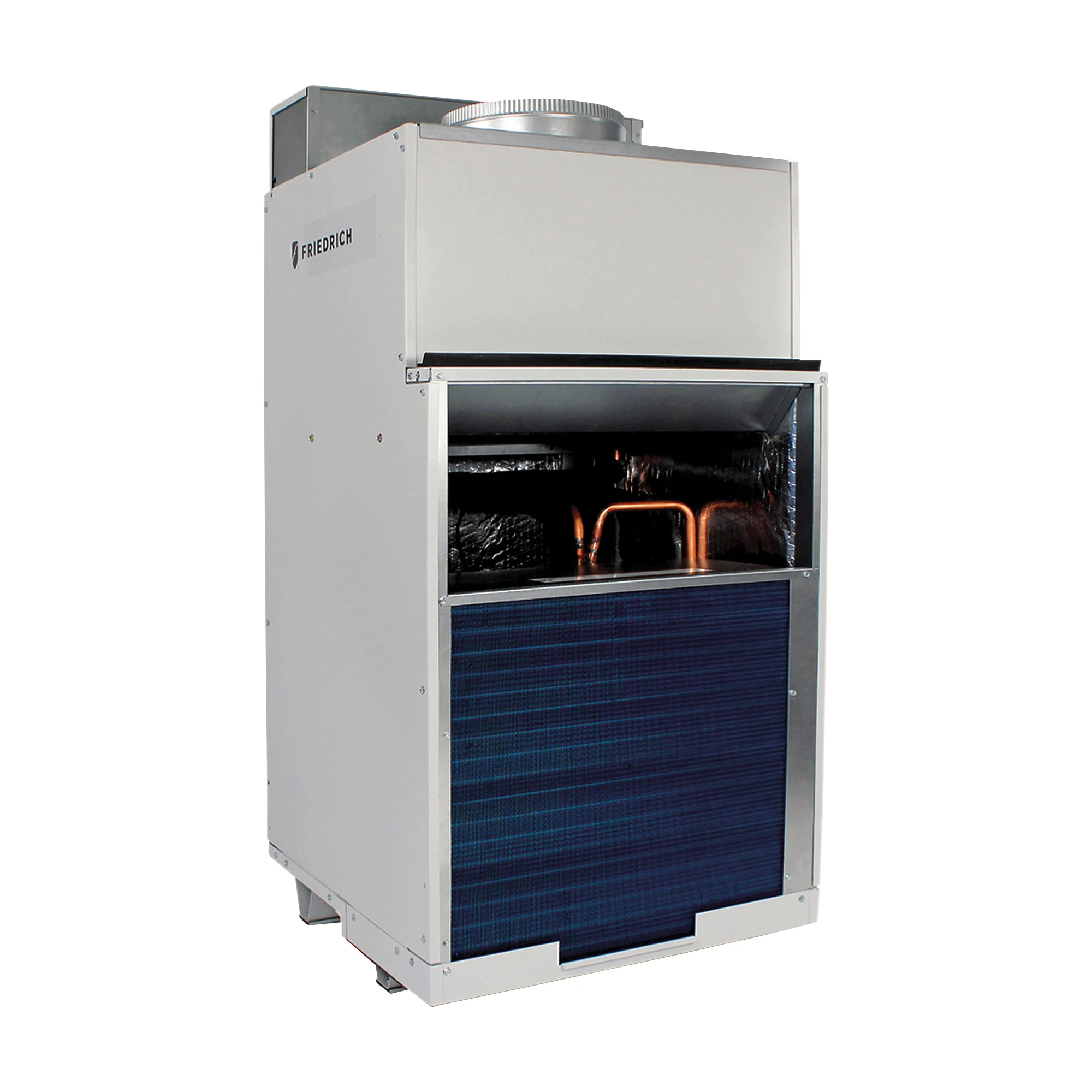

VERT-I-PAK
Vertical Package Terminal Air Conditioners
Check out more features of the Friedrich Vert-I-Pak series here.
View basic chassis dimensions available below. See product brochure for more details.

| Model | Operation | Cooling BTU | Reverse Heating BTU | Voltage | EER | COP @ 47F |
|---|---|---|---|---|---|---|
| VHA09K25RTP | Cool/Heat Pump | 9300 | 8300 | 230/208 | 11.0 | 3.3 |
| VHA09K34RTP | Cool/Heat Pump | 9300 | 8300 | 230/208 | 11.0 | 3.3 |
| VHA09K50RTP | Cool/Heat Pump | 9300 | 8300 | 230/208 | 11.0 | 3.3 |
| VHA09R25RTP | Cool/Heat Pump | 9300 | 8300 | 265 | 11.0 | 3.3 |
| VHA09R34RTP | Cool/Heat Pump | 9300 | 8300 | 265 | 11.0 | 3.3 |
| VHA09R50RTP | Cool/Heat Pump | 9300 | 8300 | 265 | 11.0 | 3.3 |
| VHA12K25RTP | Cool/Heat Pump | 11500 | 10600 | 230/208 | 11.0 | 3.3 |
| VHA12K34RTP | Cool/Heat Pump | 11500 | 10600 | 230/208 | 11.0 | 3.3 |
| VHA12K50RTP | Cool/Heat Pump | 11500 | 10600 | 230/208 | 11.0 | 3.3 |
| VHA12R25RTP | Cool/Heat Pump | 12400 | 11300 | 265 | 11.0 | 3.3 |
| VHA12R34RTP | Cool/Heat Pump | 12400 | 11300 | 265 | 11.0 | 3.3 |
| VHA12R50RTP | Cool/Heat Pump | 12400 | 11300 | 265 | 11.0 | 3.3 |
| VHA18K25RTP | Cool/Heat Pump | 18400 | 16700 | 230/208 | 11.0 | 3.3 |
| VHA18K34RTP | Cool/Heat Pump | 18400 | 16700 | 230/208 | 11.0 | 3.3 |
| VHA18K50RTP | Cool/Heat Pump | 18400 | 16700 | 230/208 | 11.0 | 3.3 |
| VHA18R25RTP | Cool/Heat Pump | 18400 | 16700 | 265 | 11.0 | 3.3 |
| VHA18R34RTP | Cool/Heat Pump | 18400 | 16700 | 265 | 11.0 | 3.3 |
| VHA18R50RTP | Cool/Heat Pump | 18400 | 16700 | 265 | 11.0 | 3.3 |
| VHA24K25RTP | Cool/Heat Pump | 22500 | 19500 | 230/208 | 11.0 | 3.3 |
| VHA24K34RTP | Cool/Heat Pump | 22500 | 19500 | 230/208 | 11.0 | 3.3 |
| VHA24K50RTP | Cool/Heat Pump | 22500 | 19500 | 230/208 | 11.0 | 3.3 |
| VHA24K75RTP | Cool/Heat Pump | 22500 | 19500 | 230/208 | 11.0 | 3.3 |
| VHA24K10RTP | Cool/Heat Pump | 22500 | 19500 | 230/208 | 11.0 | 3.3 |
| VHA24R25RTP | Cool/Heat Pump | 22500 | 19500 | 265 | 11.0 | 3.3 |
| VHA24R34RTP | Cool/Heat Pump | 22500 | 19500 | 265 | 11.0 | 3.3 |
| VHA24R50RTP | Cool/Heat Pump | 22500 | 19500 | 265 | 11.0 | 3.3 |
| VHA24R75RTP | Cool/Heat Pump | 22500 | 19500 | 265 | 11.0 | 3.3 |
| VHA24R10RTP | Cool/Heat Pump | 22500 | 19500 | 265 | 11.0 | 3.3 |
Product Overview
Ideal for extended stay locations, dorms, assisted living facilities, and more, this system allows you to maintain access to windows and walls while creating an attractive look both indoors and out.
Year-Round Large Area Comfort
A powerful cooling and heating performance makes the Friedrich Vert-I-PAK effective in spaces as large as 1,000 square or even in multiple smaller rooms when connected to ducting. You'll have 18,200 BTUs of cooling in the summer, 16,800 BTUs of heat in the winter, and two fan speeds for customized airflow. Add the Friedrich WRT2 Wireless Remote Thermostat to each room and give tenants the freedom of individualized control.
Perfect for Multi-Unit Facilities
Finding the right cooling and heating option can be difficult, but thanks to the Friedrich 18,000 BTU Vertical Package Air Conditioner and several key benefits, you can stop searching. Reduced Installation Costs: When compared to other comfort choices, especially central systems, a vertical air conditioner is a cost-effective solution. Individual Metering: Central units require you to prorate each room's usage. Vertical air conditioners make it easier to track usage and bill accordingly. Simple Maintenance Access: Thanks to a 3-way slide-out chassis that can be installed from any interior side, maintenance and repair access is simple. Less Downtime: An issue with a central system can cause every unit to be affected. With this air conditioner, in the event of a problem the only spaces affected are those connected to the unit.
Additional Features
Compact Design: This compact Friedrich Vertical Package Air Conditioner is typically installed in a mechanical closet and is completely self-contained. Concealed Installation: Maintains access to window and wall space without requiring you to have unsightly compressors and piping outdoors. Durable Design: Its painted, 18-gauge galvanized steel cabinet resists corrosion. Simple Servicing: With its onboard electronic control panel, diagnostics and servicing are easy. Ductable: The unit can be ducted to multiple rooms depending on room size. Ready to Go: This unit comes prewired, charged, and piped and only an electrical hook up is required. Summary Cool and heat large rooms, or multiple rooms, in multi-unit facilities with this easy to use, versatile, and powerful vertical package AC from Friedrich.
Sample Description


W: 23“ x D: 23“ x H: 32”
Vert-I-Pak 9-12 Model Dimensions
Applies to model #’s:
VHA09K25RTP, VHA09K34RTP, VHA09K50RTP, VHA09R25RTP, VHA09R34RTP, VHA09R50RTP, VHA12K25RTP, VHA12K34RTP, VHA12K50RTP, VHA12R25RTP, VHA12R34RTP, VHA12R50RTP
W: 23“ x D: 23“ x H: 47”
Vert-I-Pak 18 Model Dimensions
Applies to model #’s:
VHA18K25RTP, VHA18K34RTP, VHA18K50RTP, VHA18R25RTP, VHA18R34RTP, VHA18R50RTP
W: 23“ x D: 23“ x H: 52”
Vert-I-Pak 24 Model Dimensions
Applies to model #’s:
VHA24K25RTP, VHA24K34RTP, VHA24K50RTP, VHA24K75RTP, VHA24K10RTP, VHA24R25RTP, VHA24R34RTP, VHA24R50RTP, VHA24R75RTP, VHA24R10RTP
