Home » Products » FreshAire® Package Terminal Air Conditioner

FreshAire^®

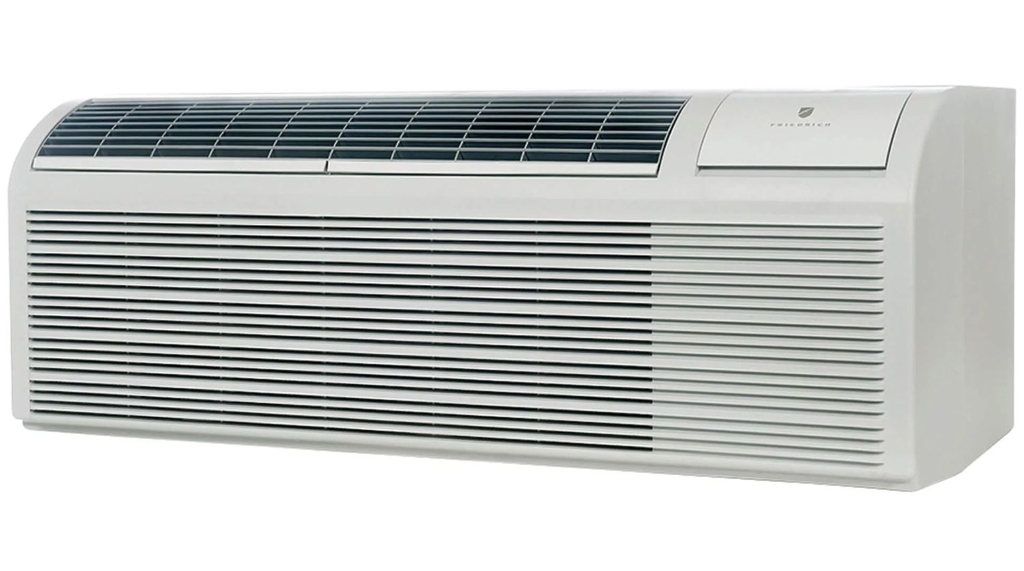

The most advanced PTAC ever. Inverter compressor delivers best-in-class efficiencies with ultra-quiet operation. Friedrich’s award-winning and patented FreshAire system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Friedrich’s FreshAire PTAC also boasts the highest STC ratings in the industry amongst PTACs with make-up air. The widest cooling and heating range in the industry with only 2 models. (9,000 and 12,000 Btu)

Size:

16in x 42in x 21in (LxWxH)

You can later choose whether you want a quote, or if you place a firm order.

Product Overview

FreshAire^®

---

ZoneAire® | FreshAire® Packaged Terminal Air Conditioners

THE MOST TRUSTED BRAND OF PTACs IN NORTH AMERICA
(DOWNLOAD BROCHURE)

FreshAire units with inverter compressors deliver equivalent SEERs up to 15.0; application HSPFs up to 11.57, and offer many advantages over traditional PTACs.

1. Improved dehumidification
2. Quieter start-up and operation
3. Better efficiency during part load hours of cooling & heating
4. Reduced temperature swings improve guest comfort

• Specifications
• Product Overview
• Product Images

Model	Operation	Cooling BTU	Cooling Range	Reverse Heating BTU	Voltage	EER	COP@ 47F	Cooling Area (Sq. Ft.)
PVH09K3FB	Cool/Heat Pump/Inverter	9600/9400	6462 - 12099	8200/8500	230/208	12.1/12.1	3.51/3.51	400-450
PVH12K3FB	Cool/Heat Pump/Inverter	12000/11800	7929 - 17142	11600/11800	230/208	11.5/11.5	3.57/3.58	450-550
PVH09R3FB	Cool/Heat Pump/Inverter	9600	6462 - 12099	8500	265	12.0	3.51	400-450
PVH12R3FB	Cool/Heat Pump/Inverter	12000	7929 - 17142	11800	265	11.5	3.57	450-550

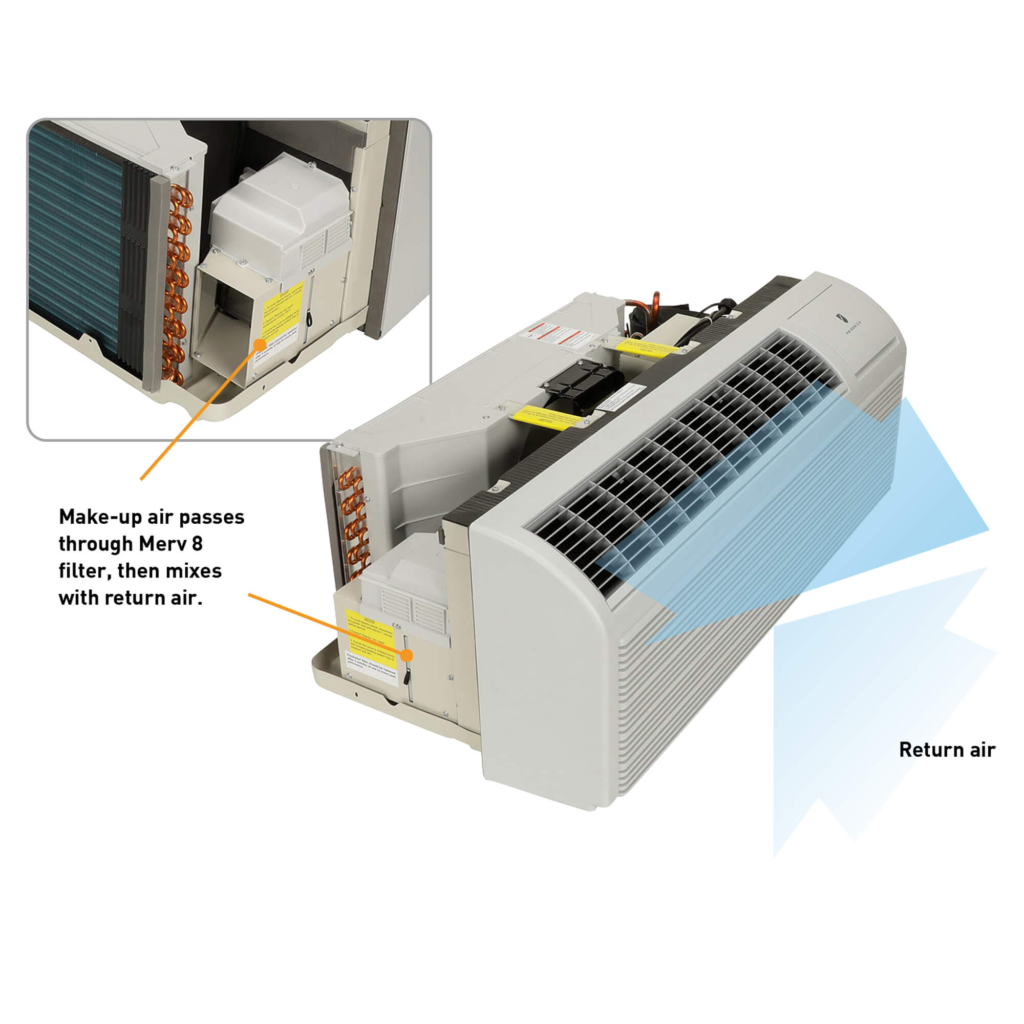

FreshAire® Packaged Terminal Air Conditioners The most advanced PTAC ever. Delivers the best STC ratings* in the industry of units with true make-up air capability. FreshAire system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Patents-pending technology uses the inverter compressor and main cooling system to optimize temperature and humidity level of incoming air. By introducing make-up air directly into the guestroom, rooftop central fresh air systems can be considerably downsized to service only the common areas of the property. This greatly reduces the cost and complexity of hotel design and construction. Unlike other PTACs, the FreshAire PTAC utilizes the main evaporator coil and Merv 8 filters to truly condition and filter the outside ventilation air.

Friedrich's proprietary Freshaire™ design and delivery system is protected under US Patent#10.436.457 *With makeup air active (door open)

FreshAire PTAC Videos
